Construction Vehicle Air Suspension Rubber Air Spring OE Replacement Phoenix 1D28A10, Airtech 133422

Construction Vehicle Air Suspension Rubber Air Spring OE Replacement Phoenix 1D28A10, Airtech 133422
Construction Vehicle Air Suspension Rubber Air Spring OE Replacement Phoenix 1D28A10, Airtech 133422 Construction Vehicle Air Suspension Rubber Air Spring OE Replacement Phoenix 1D28A10, Airtech 133422 Construction Vehicle Air Suspension Rubber Air Spring OE Replacement Phoenix 1D28A10, Airtech 133422 Construction Vehicle Air Suspension Rubber Air Spring OE Replacement Phoenix 1D28A10, Airtech 133422

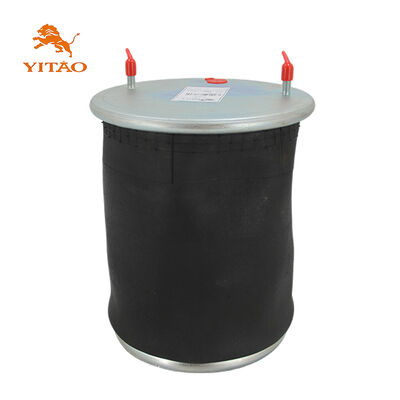

Grande immagine :  Construction Vehicle Air Suspension Rubber Air Spring OE Replacement Phoenix 1D28A10, Airtech 133422

Dettagli:
Luogo di origine: Cina
Marca: YITAO
Certificazione: IATF16949
Numero di modello: 1V6338/0V3918
Termini di pagamento e spedizione:
Quantità di ordine minimo: 50 pezzi
Prezzo: Negotiable in person
Imballaggi particolari: CARTONE
Tempi di consegna: 1 ~ 30 giorni
Termini di pagamento: T/T
Capacità di alimentazione: 5000 pezzi/mese
Contatto

Construction Vehicle Air Suspension Rubber Air Spring OE Replacement Phoenix 1D28A10, Airtech 133422

descrizione
Numero OE: W01-M58-6338,1T19L-7,4810NP05,61162,1R14-730,16092,133422,32918K,3.229.0027.00,2918V OE NO2: 3.229.2127.00,3.229.2427.00,D13B25,1T19E-1,205456,KR621-18,1D28A10,133422,32918K,9518147300,MLF7025
Numero YITAO: 1V6338 Tipo: Molla pneumatica per camion
Condizione: Nuovo di zecca Garanzia: 12 mesi
Tempo di spedizione tipico: 3-10 giorni Configurazione di tenuta: Piastra di copertura a crimpare + piastra di tenuta vulcanizzata
Materiale: Gomma naturale Materiale del pistone: Ferro
Imballaggio: Imballaggio neutro o imballaggio personalizzato
Evidenziare:

Truck air spring OE replacement

,

Construction vehicle air suspension

,

Airtech rubber air spring

Construction Vehicle Air Suspension Rubber Air Spring OE Replacement Phoenix 1D28A10, Airtech 133422
Cab Suspension Rubber Air Spring
High Quality Air Suspension Bag - Phoenix 1D28A10 Airtech 133422
Product Overview
Manufactured to specifications matching Phoenix 1D28A10 and Airtech 133422, this air spring fully replaces the original equipment and provides a comfortable and stable ride.
Cross References
Brand Reference Numbers Numbering Discrepancy
FirestoneW01-M58-6338W01M586338 / W01-M58-6338 / W01 M58 6338
Firestone1T19L-71T19L7 / 1T19L-7 / 1T19L 7
Contitech4810NP05:4810NP05
Contitech61162:61162
Goodyear1R14-7301R14730 / 1R14-730 / 1R14 730
Granning16092:16092
Granning133422:133422
Granning32918K:32918K
SAF3.229.0027.00:3.229.0027.00
SAF2918V:2918V
SAF3.229.2127.00:3.229.2127.00
SAF3.229.2427.00:3.229.2427.00
Dunlop FRD13B25:D13B25
Dunlop FR1T19E-11T19E1 / 1T19E-1 / 1T19E 1
Dunlop FR205456:205456
TaurusKR621-18KR62118 / KR621-18 / KR621 18
Phoenix1D28A10:1D28A10
Airtech133422:133422
Airtech32918K:32918K
WABCO9518147300:9518147300
MeritorMLF7025:MLF7025
Technical Specifications
Specifications Parameters
Outer diameterφ275
Weight12.358 kg
Package Dimensions30*30*39.5cm
Natural height563mm
Maximum height538mm
Minimum height197mm
Extended Height557mm
Compressed Height185mm
Top Plate Width289mm
Piston Width260mm

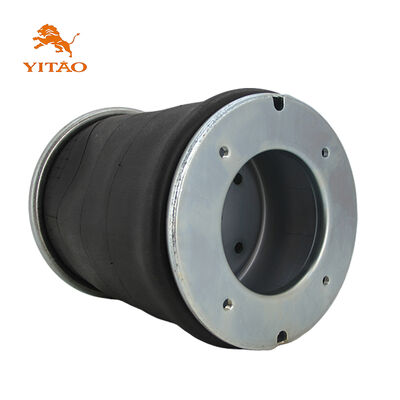

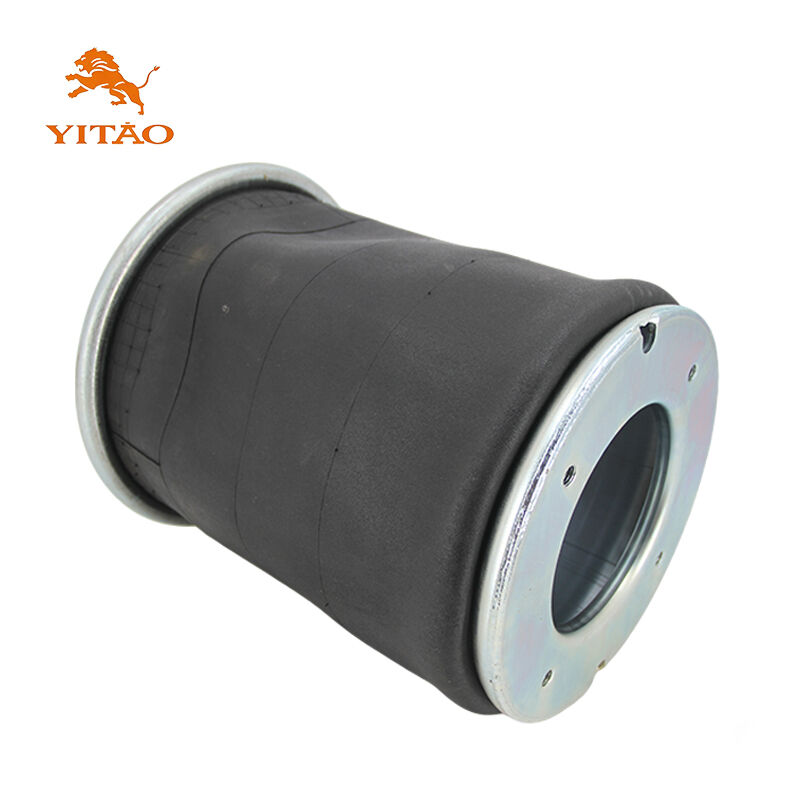

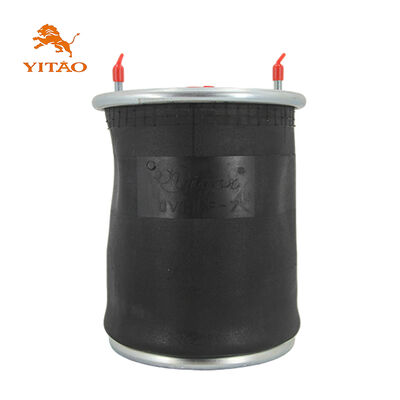

Product Drawings & Images
Construction Vehicle Air Suspension Rubber Air Spring OE Replacement Phoenix 1D28A10, Airtech 133422 0
Images shown are for reference only. Actual product may vary slightly.
Factory Showcase
Construction Vehicle Air Suspension Rubber Air Spring OE Replacement Phoenix 1D28A10, Airtech 133422 1
Factory Overlook
Construction Vehicle Air Suspension Rubber Air Spring OE Replacement Phoenix 1D28A10, Airtech 133422 2
Quality Control Inspection
Construction Vehicle Air Suspension Rubber Air Spring OE Replacement Phoenix 1D28A10, Airtech 133422 3
Manufacturing Equipment
Construction Vehicle Air Suspension Rubber Air Spring OE Replacement Phoenix 1D28A10, Airtech 133422 4
R&D Center
Construction Vehicle Air Suspension Rubber Air Spring OE Replacement Phoenix 1D28A10, Airtech 133422 5
Assembly and Forming
Construction Vehicle Air Suspension Rubber Air Spring OE Replacement Phoenix 1D28A10, Airtech 133422 6
Vulcanization Shop
Delivery Information
  • Delivery Time: Orders are typically shipped after payment is received. Depending on order size, shipment will be completed within 1-30 business days
  • Packing Method: Brown carton packing; we can also pack according to your requirements
  • Shipping Marks: Generally display weight and size. We can also make shipping marks according to your requirements
  • Transportation Methods: Sea transportation, air transportation, express delivery, railway transportation and various combined transportation methods
  • International Transport Notes: Due to international transportation requirements, we pack according to strict standards to avoid damage. If logistics information is stagnant during transportation, please wait patiently. Contact us with any questions
Frequently Asked Questions
IS THE SAMPLE AVAILABLE?
Yes, we typically send samples via TNT, DHL, FEDEX or UPS. Delivery takes approximately 3 days. Customers are responsible for sample costs and airmail freight. Sample costs will be refunded after order placement.
WHAT IS YOUR WARRANTY TERM?
Full container load orders receive 1% free spare parts. Export products carry a 12-month warranty from the shipment date. For product failures within the warranty period, customers are responsible for replacement part costs.
CAN I USE MY OWN LOGO AND DESIGN ON PRODUCTS?
Yes, OEM services are welcomed.
I CANNOT FIND THE ITEMS I WANT FROM YOUR WEBSITE, CAN YOU OFFER THE PRODUCTS I NEED?
Yes. We provide product sourcing services for our customers. Please provide detailed information about the items you require.
Contact Us
Feel free to reach out. We'll get back to you within 24 hours (or sooner if we can!) and are excited to work with you.
